Differences Between Industrial Overhead Doors and High-Speed Roll-Up Doors

1. Key Differences Overview

• Structural Difference: Overhead doors use rigid panels (steel + foam core) while roll-up doors feature flexible PVC curtains

• Operation Method: Overhead doors lift vertically/sideways, roll-up doors stack and roll open

• Speed Comparison: Roll-up doors operate faster (0.8-1.5m/s) vs overhead doors (0.2-0.5m/s)

• Sealing Standard: Roll-up doors achieve Class 1000 cleanroom standards, overhead doors have slightly lower sealing

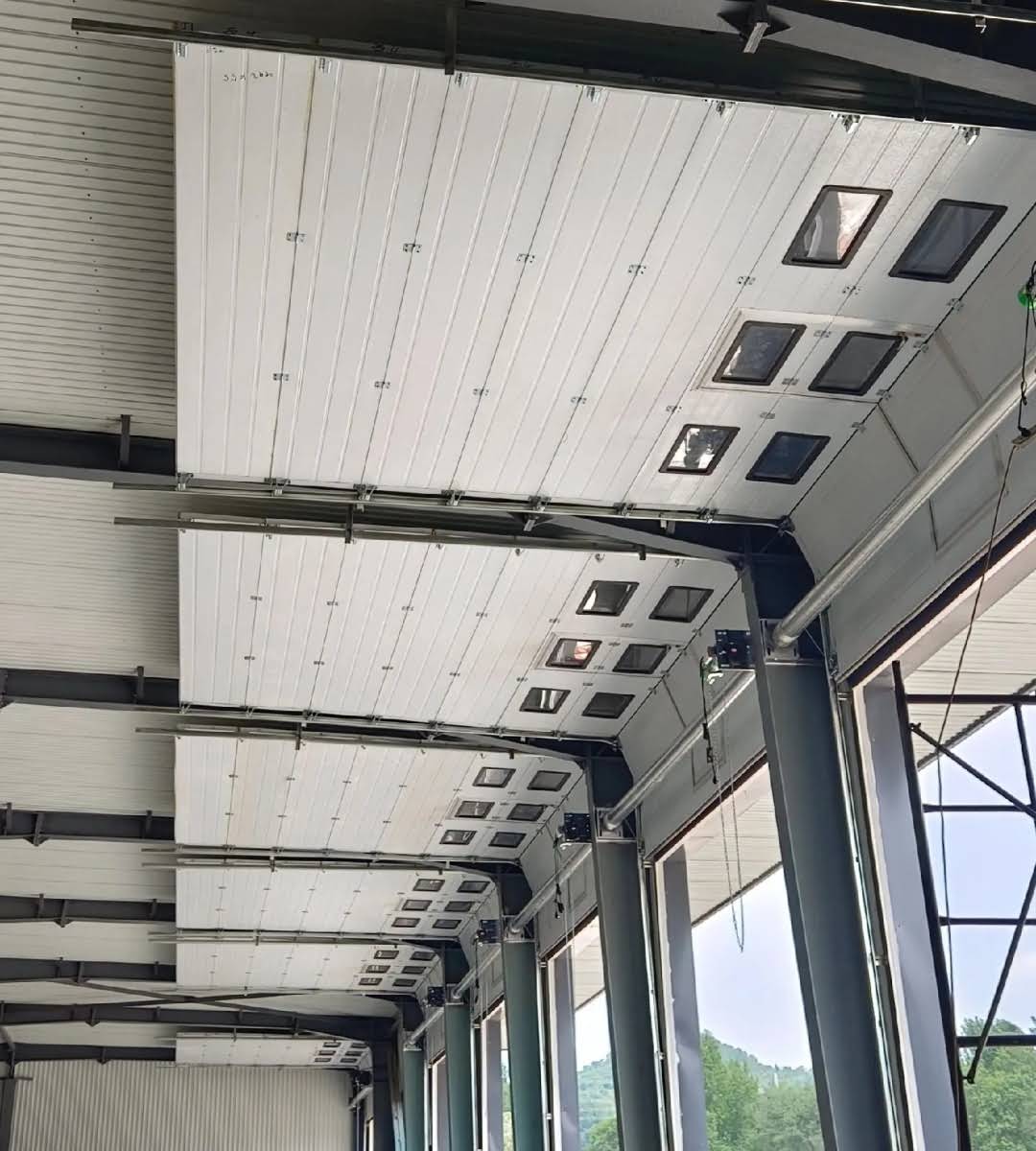

2. Industrial Overhead Door Features

• Construction: Double-layer galvanized steel + polyurethane foam, 40-50mm thickness

• Applications: Standard warehouses, factories, garages

• Key Advantages: ✓ Extreme durability (30,000+ cycles) ✓ Superior insulation (U-value ≤0.45W/m²K) ✓ Multiple operation modes (manual/electric/remote) ✓ Enhanced security against break-ins

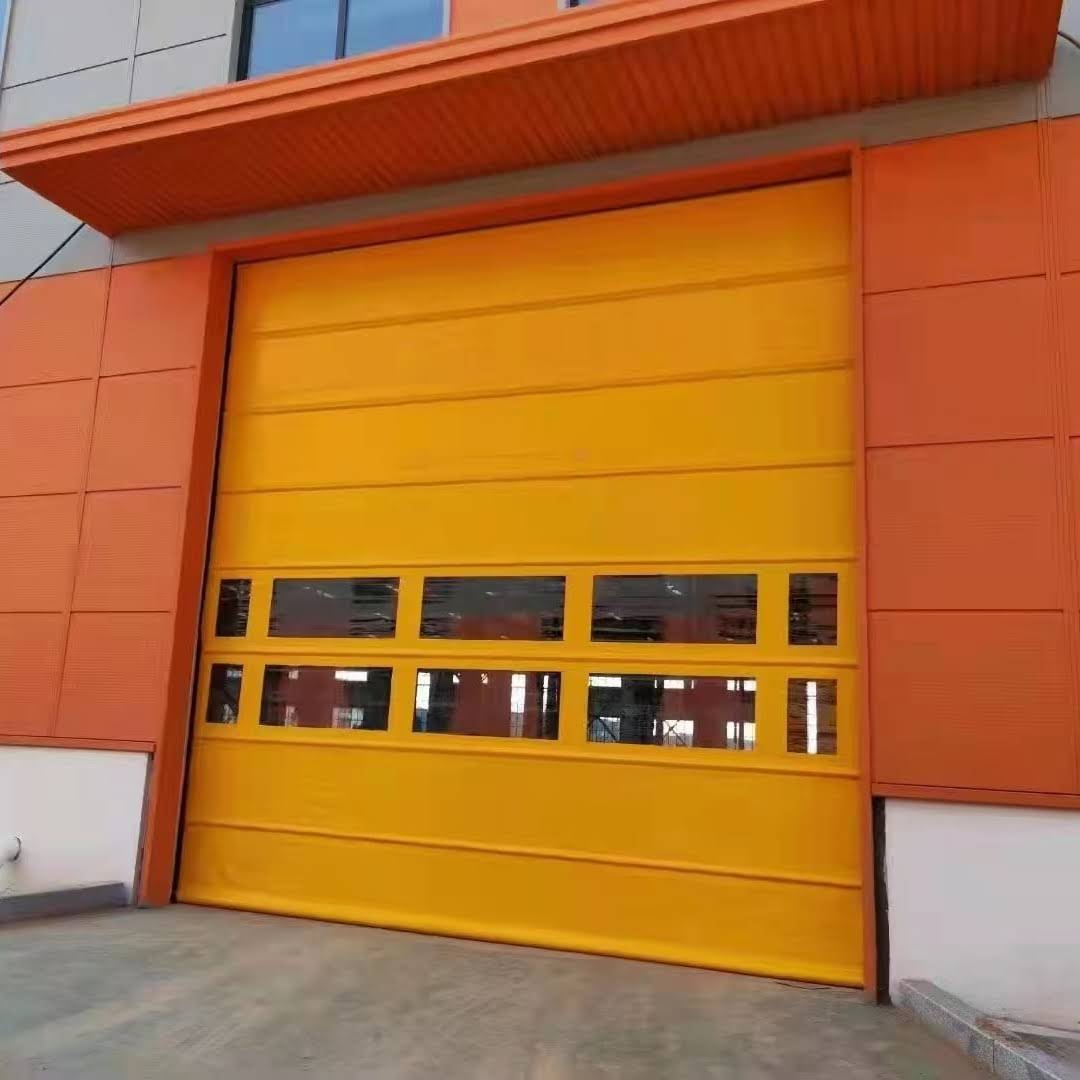

3. High-Speed Roll-Up Door Characteristics

• Construction: Reinforced PVC curtain + aluminum bottom bar

• Ideal Applications: ✓ High-traffic loading docks ✓ Cleanrooms (food/pharmaceutical) ✓ Cold storage (-30℃ environments)

• Key Advantages: ✓ Ultra-fast operation (up to 1.5m/s) ✓ Class 1000 sealing (double brush system) ✓ 80% reduction in air exchange ✓ Wind resistance (up to Beaufort scale 10)




FAQ

Q1: Which door is better for food processing plants?A1: Roll-up doors are recommended. Their Class 1000 sealing and rapid operation effectively block dust and pests, meeting food safety standards.

Q2: What's better for cold northern regions?A2: Both work but serve different needs:

• Overhead doors: Better for constant-temperature storage

• Roll-up doors: Ideal for frequent-access cold rooms

Q3: Which has lower maintenance costs?A3: Overhead doors require only track lubrication. Roll-up doors need PVC curtain replacement every 3-5 years, though motors last 500,000 cycles.

Q4: Which offers better security?A4: Overhead doors are superior. Their steel construction resists forced entry, while PVC curtains can be cut.

Q5: Can both door types be used in one facility?A5: Yes. Common configurations:

• Overhead doors for main entrances (security)

• Roll-up doors for loading docks (efficiency)

• Roll-up doors for clean zones (contamination control)
