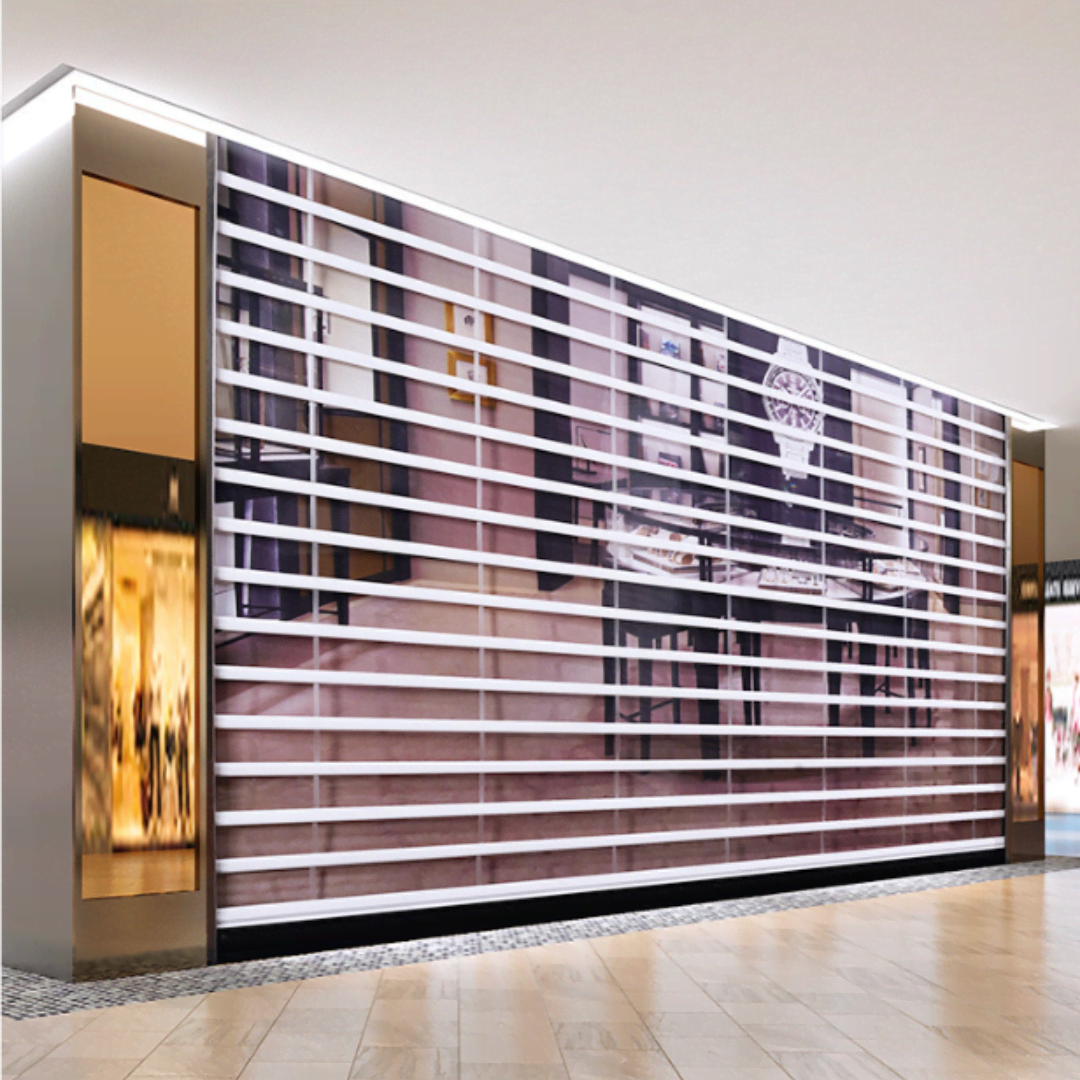

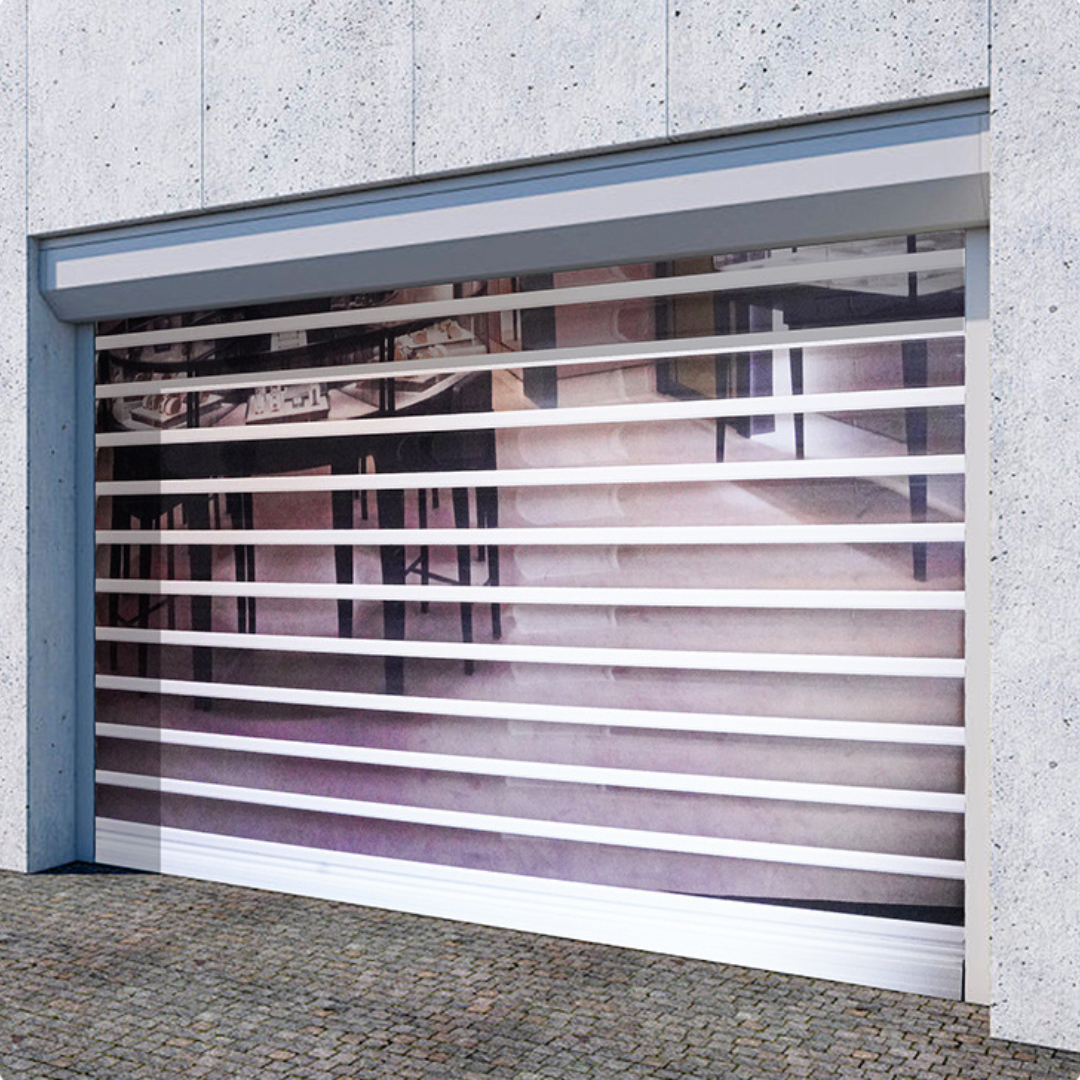

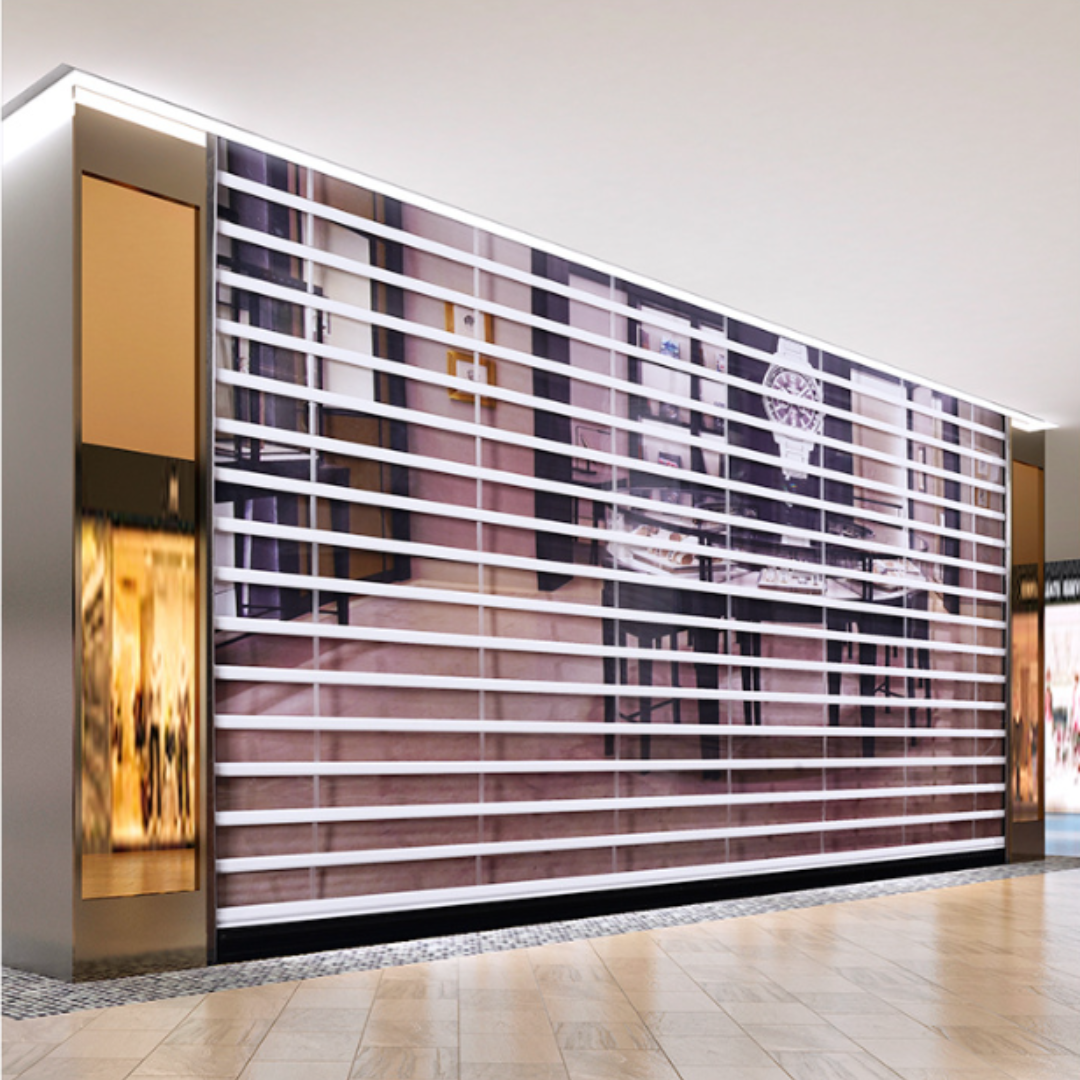

Crystal Roller Shutter Door: Where Aesthetics Meet Security
1. Key Features
Visual Excellence
Near-glass clarity (haze ≤3%) with optional LED backlighting for dynamic advertising
Transparent/frosted/striped surface treatments for diverse commercial styles
UV-resistant coating maintains >95% light transmission after 10 years (ASTM D4329)
Industrial-Grade Protection
200x stronger impact resistance than glass (ISO 6603-2)
Operational range from -40℃ to 120℃ (SGS certified)
Optional anti-theft locks (EN 1627 compliant)
Smart Operation
APP control/timer/motion sensor activation
<55dB noise level (measured at 1m)
Manual override with 0.5m/s emergency lift
2. Technical Specifications
| Parameter | Value |
|---|---|
| Max. Single Unit | 6m(W)×5m(H) |
| Panel Thickness | 3/5/8/10/15mm |
| Light Transmission | 92%±2% |
| Wind Resistance | <900Pa (Category 10 wind) |
| Fire Rating | Class B1 |
3. Applications

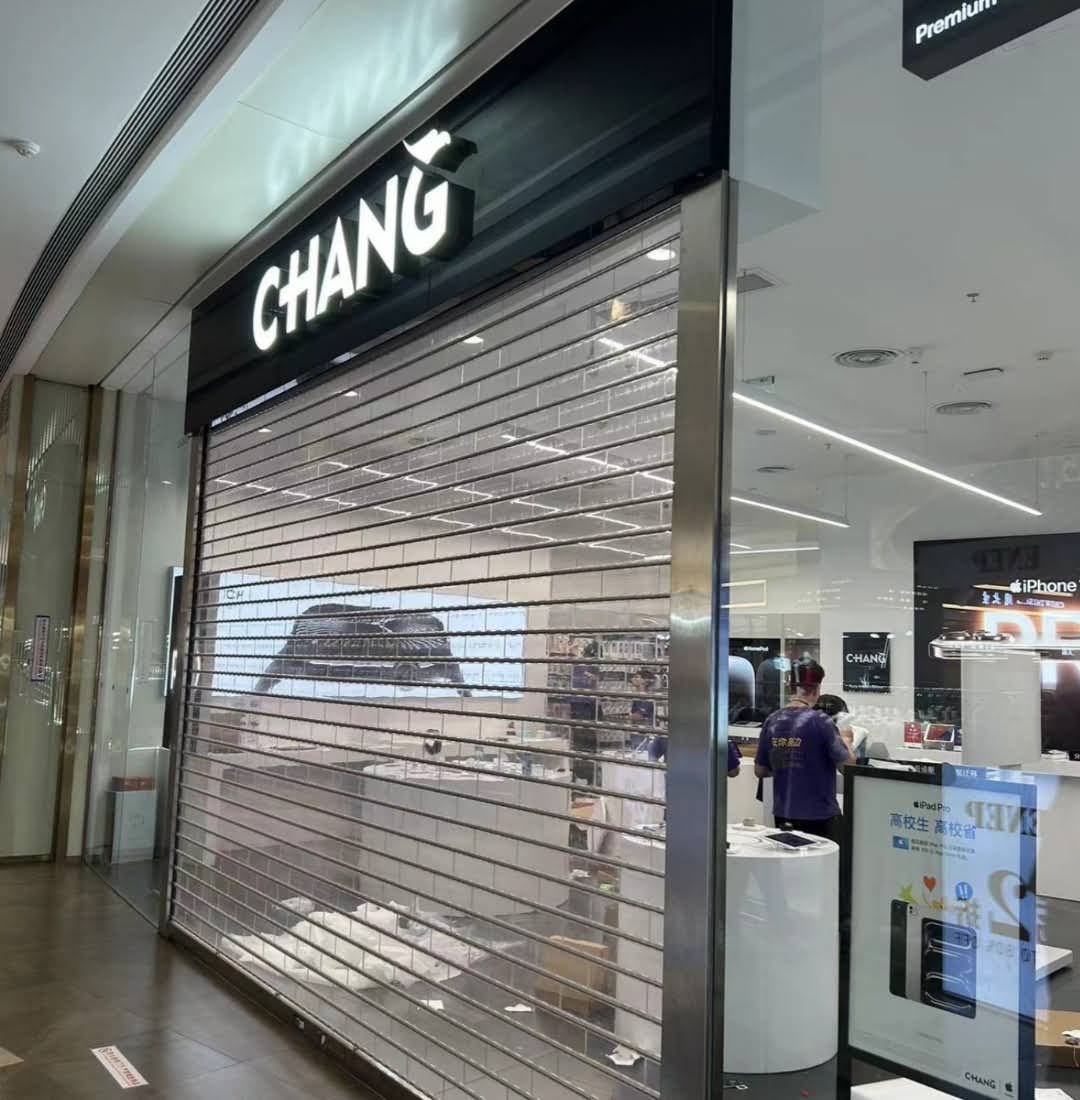

Retail Stores: Fully retractable display by day, secure transparent barrier by night
Auto Dealerships: Vehicle showcasing with nighttime protection
Museums/Showrooms: 99% UV filtration for artifact preservation

Q1: What makes crystal roller shutter doors both stylish and secure?
A1: Crystal roller shutter doors use high-transparency polycarbonate panels, offering a sleek, modern look while maintaining strength. They resist impacts, UV rays, and even attempted break-ins, blending aesthetic appeal with robust security.
Q2: Are crystal roller shutter doors suitable for harsh weather conditions?
A2: Yes! These doors are weather-resistant, with panels that withstand wind, rain, and temperature extremes. Their durability makes them ideal for storefronts, garages, or coastal properties.
Q3: How do crystal roller shutters enhance visibility without compromising safety?
A3: The transparent or semi-transparent panels allow natural light and clear visibility, deterring theft by exposing interiors. Meanwhile, reinforced materials and locking systems ensure security isn’t sacrificed for design.
