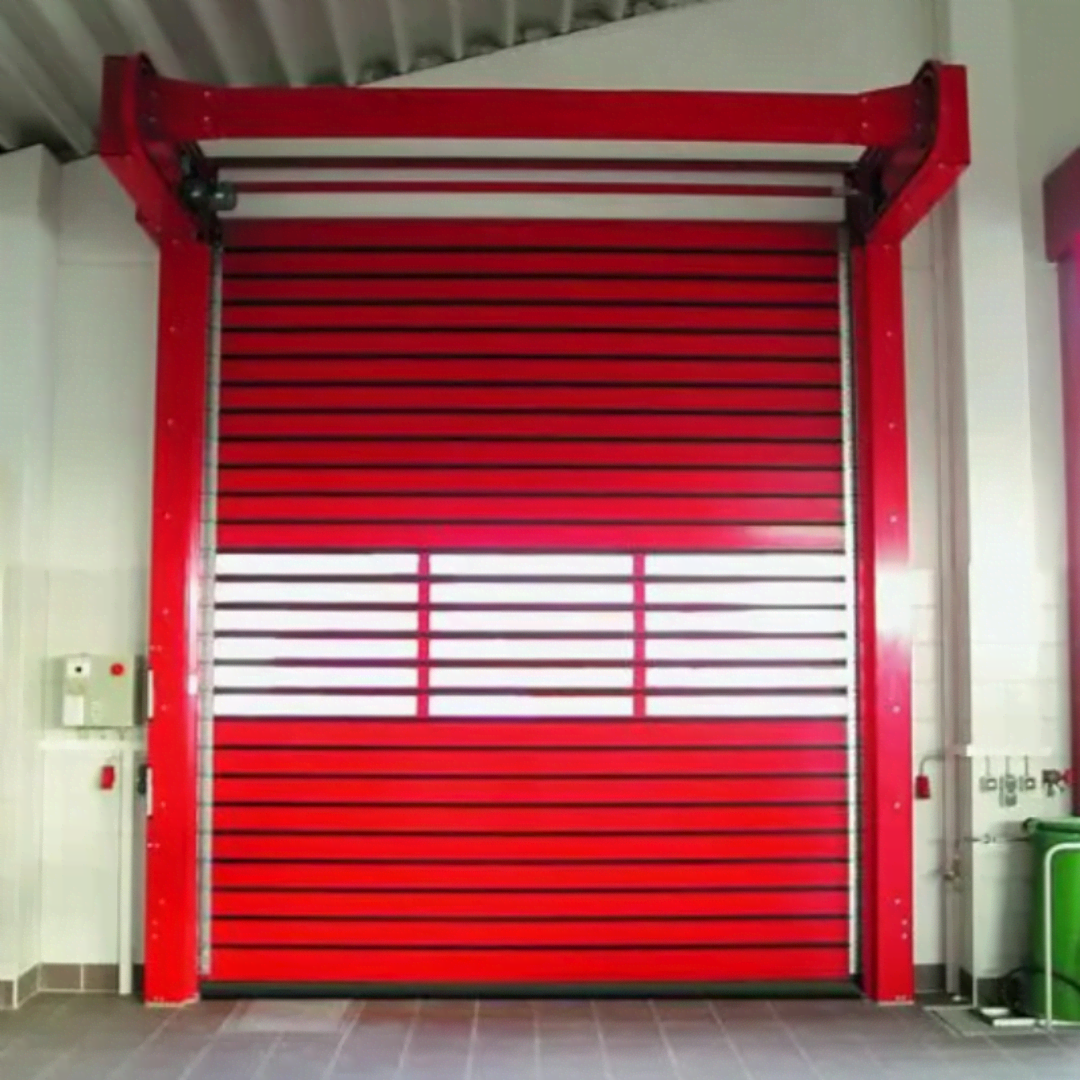

Industrial Wind-Resistant Electric Roller Shutter Door: Heavy-Duty Solution for Warehouses
1. Key Features
Superior Wind Resistance
Horizontal stiffeners and distributed load structure enhance wind resistance by 300%
Patented windproof track prevents derailment
Industrial Durability
2.0mm aluminum slats or 1.5mm galvanized steel with polyester powder coating
IP54-rated motor operates reliably at -30℃ to 60℃
Smart Control
Radar/induction loop/remote control activation
Emergency stop and infrared safety sensors (detection range ≥50cm)
Optional PLC integration with WMS systems
2. Technical Specifications
| Parameter | Value |
|---|---|
| Max. Size | 10m(W)×8m(H) (customizable) |
| Speed | 0.8-1.5m/s (adjustable) |
| Motor Power | 0.75kW-1.5kW (size-dependent) |
| Noise Level | ≤65dB (measured at 1m) |
| Cycle Life | ≥100,000 operations |
3. Applications
Logistics: Rapid loading dock access
Food/Pharma: GMP-compliant sealed variants available

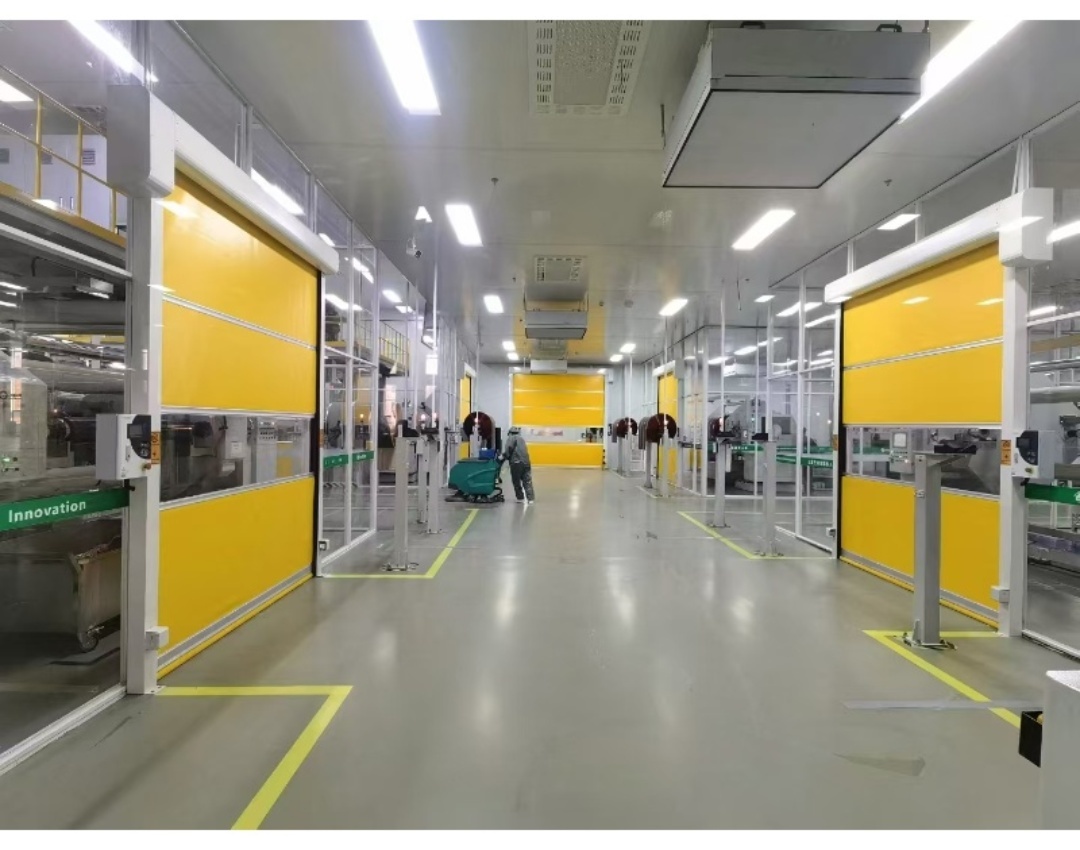

Manufacturing: Noise/dust partition solutions
Q: What wind speed can your industrial roller doors withstand?
A: Our doors are engineered to resist Category 12 typhoons (wind pressure ≥1000Pa) with reinforced tracks and distributed load structures.
Q: How fast do these roller shutters operate?
A: They maintain 1.0-1.5m/s operation speed with adjustable settings, featuring industrial motors (0.75kW-1.5kW) for high-frequency use in warehouses.
Q: What safety features are included?
A: Standard with infrared safety sensors (50cm range), emergency stop, and optional PLC/WMS integration. All doors undergo structural stress analysis before installation.
