Manufacturers Foot Pedal Activator Safety Beam Photocell Barrier Sensor For Medical Sliding Doors

category：Mozambique Automatic Door Accessories
CNB-219 Manufacturers Foot Pedal Activator Safety Beam Photocell Barrier Sensor For Medical Sliding DoorsCNB-219 series, i...

Service Hotline： +8617538627299

Product Details
contact us

CNB-219 Manufacturers Foot Pedal Activator Safety Beam Photocell Barrier Sensor For Medical Sliding Doors

CNB-219 series, it is a photocell sensor door opening switch operated by foot, or foot switch, foot sensor, feet sensor, photoelectric activation sensor. With stainless steel main shell, pull in&out socket for easy wiring. The product is fixed on the lower part of the wall and embedded installation, operated with your foot and no hand touch.Adopting microcomputer control technology, embedded concealed installation of electric detection eyes, stable performance, strong anti-interference ability. Induction principle: the product adopts active infrared. Infrared light beams are used in the foot switch mounting box as trigger for opening the automatic doors at clean room entrances. When the foot is placed on the switch pedal, the infrared beam is cut off, then will generate a door opening signal.

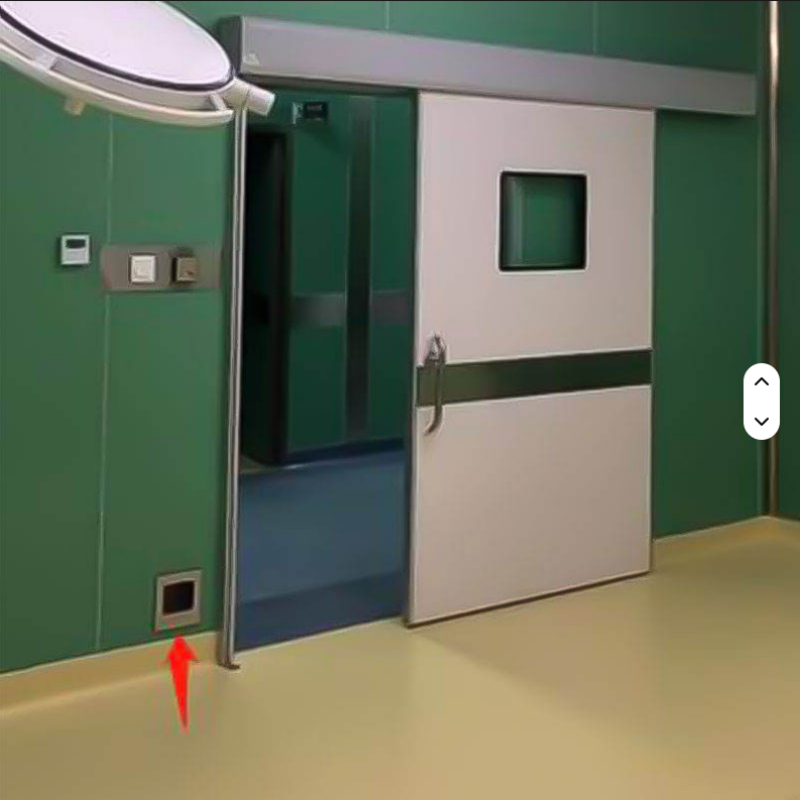

It is usually used in places where direct contact with hands is not allowed to ensure a clean environment, such as operating clean room in hospitals, food manufacturing industry, medical facilities, or other occasion, etc.

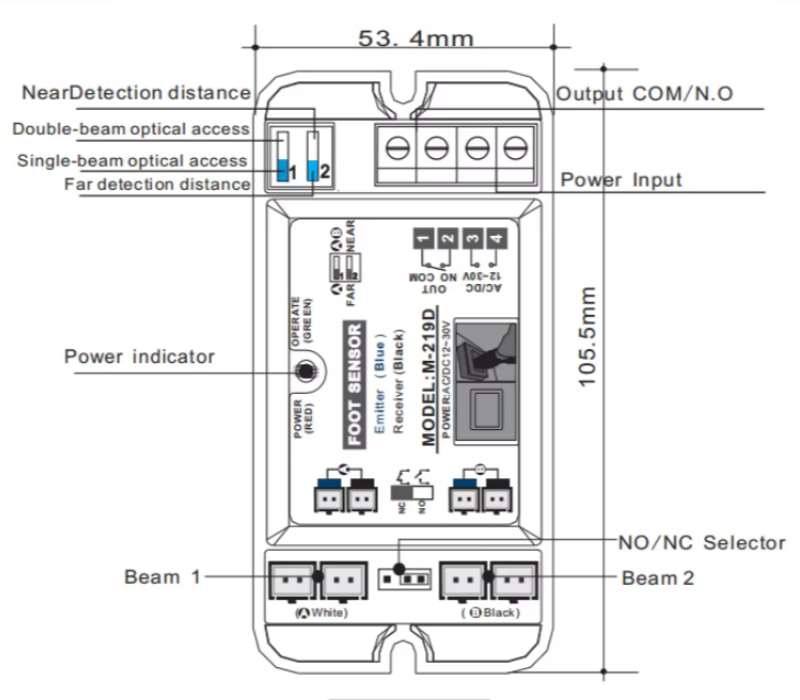

Foot-operated switch Hospital door touchless switch6.png

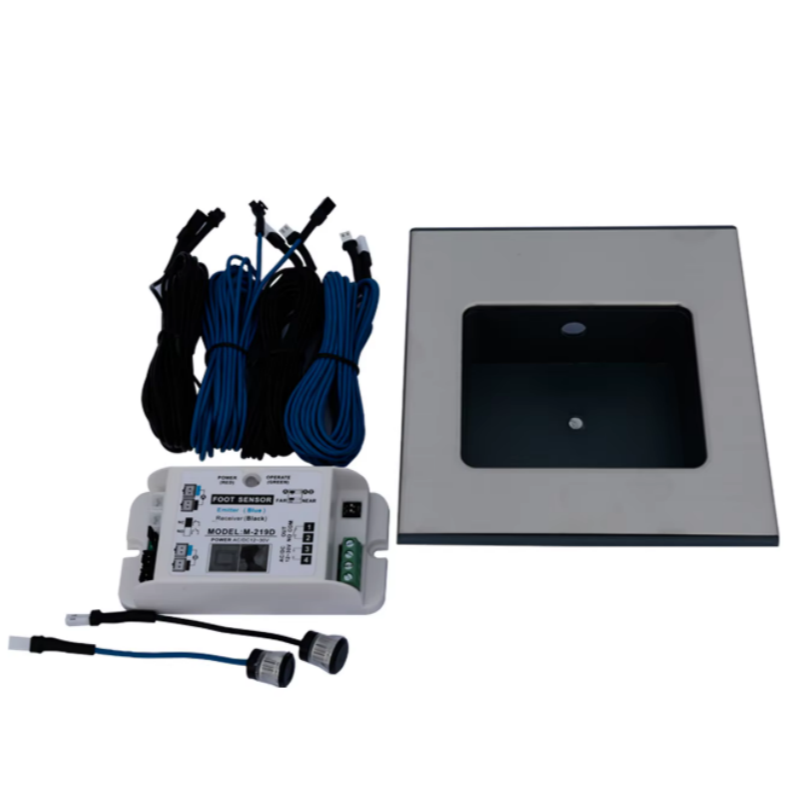

The overall composition:

1 x stainless steel main shell(foot switch box}

2 x safety beam

1 x safety beans

1 x receiver

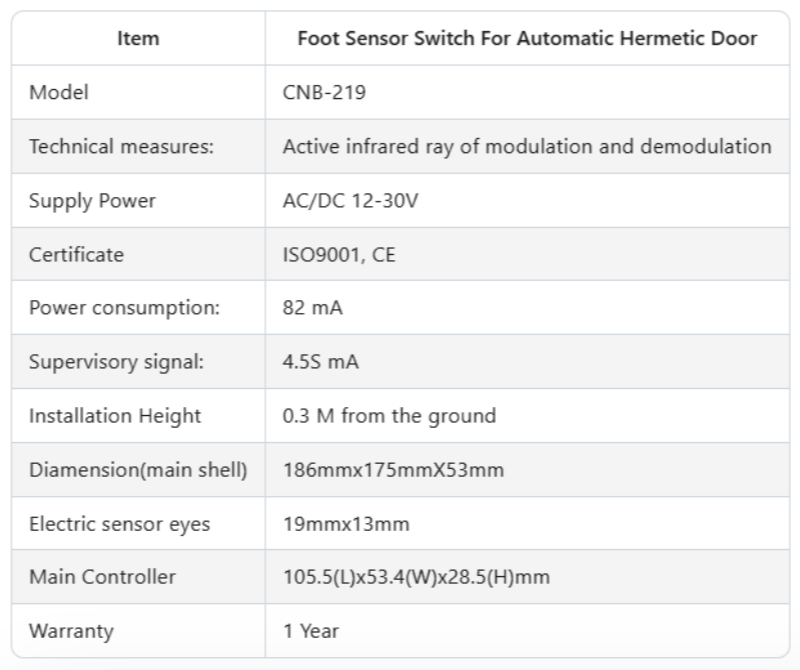

Foot-operated switch Hospital door touchless switch4.png

1, Stainless steel surface

2, With active infared light beams
3, Inductive sensor for automatic door

4, Dimension: 186mm(width) x 175mm(height) x 53mm(depth)
5, Operated with your foot and no hand touch
6, Embedded concealed mounting on the lower of the wall，easy to install.

7, Operating clean room in hospitals, food manufacturing industry, medical facilities, or other occasion, etc.
