Rigid High-Speed Doors: Technical Overview for Industrial Applications

1. Definition and Core Features

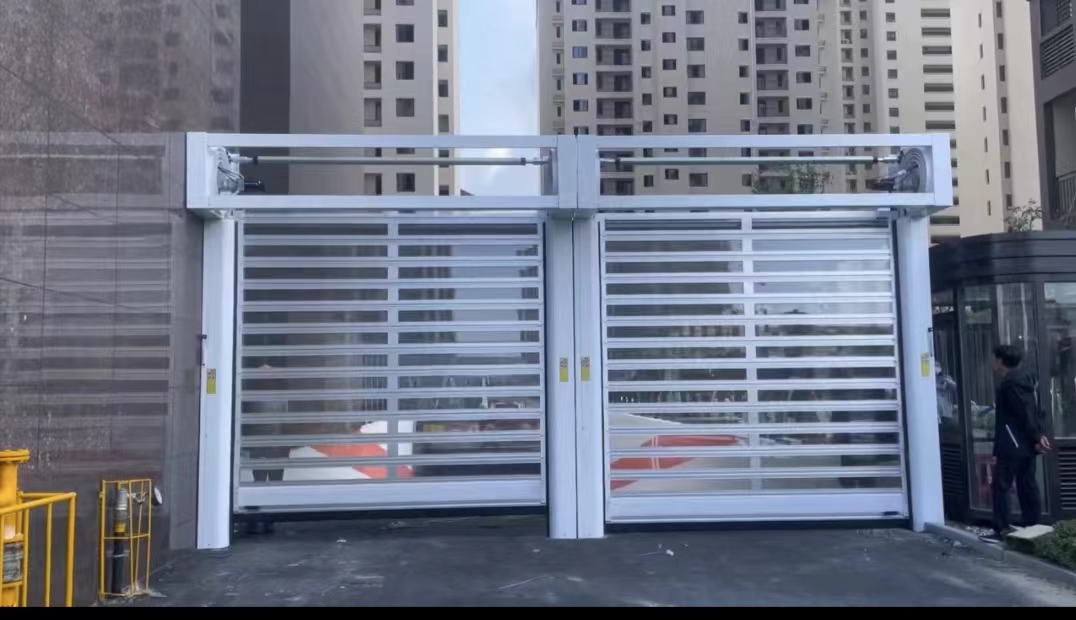

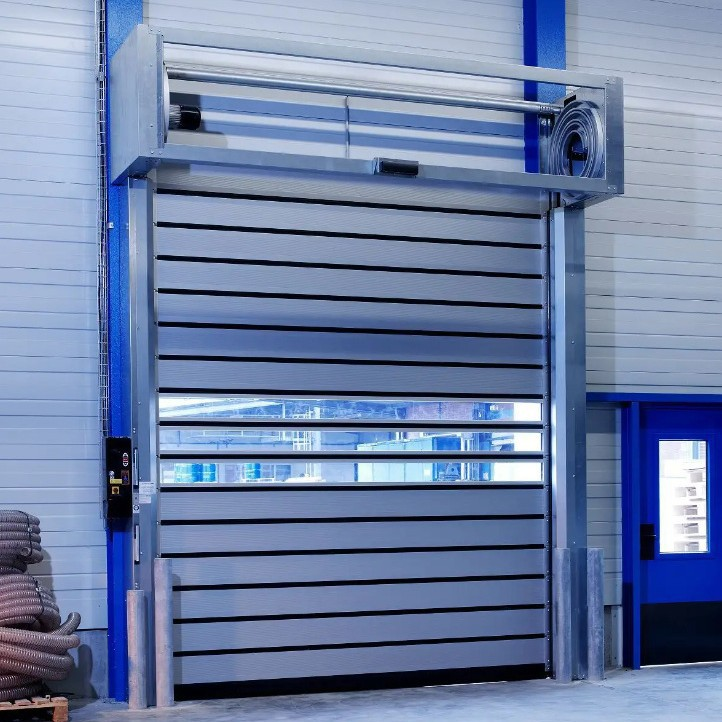

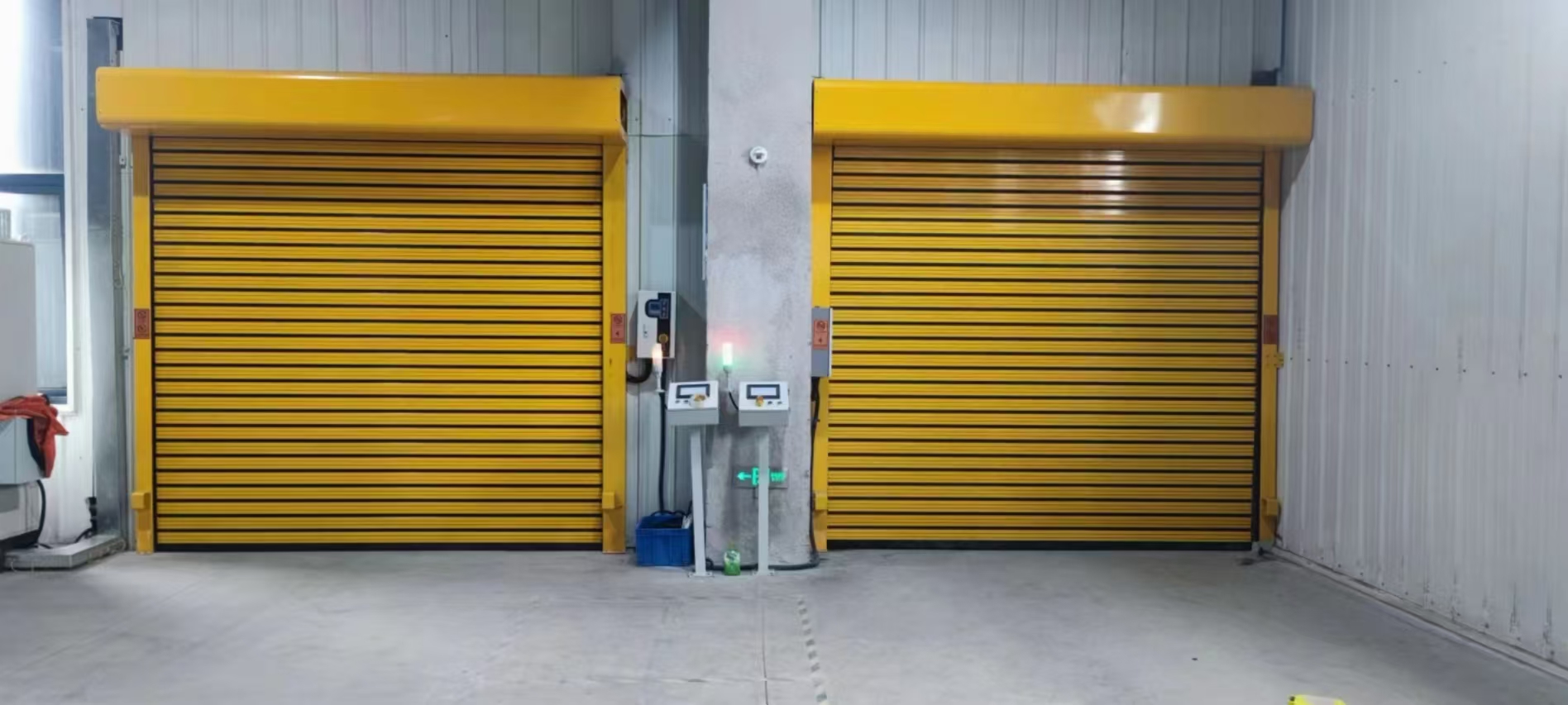

Rigid high-speed doors are industrial-grade barriers constructed from robust materials and automated systems. Key characteristics include:

• Material and Structure:

• Door panels are typically made of aluminum alloy or galvanized steel (40–50 mm thick), filled with insulation materials like polyurethane for lightweight yet high-strength performance.

• The door operates via a rolling or sliding mechanism, achieving speeds of 0.6–2.5 m/s for rapid access.

• Environmental Resistance:

• Wind resistance up to 35 m/s (Category 12 hurricane-level), suitable for harsh outdoor conditions.

• Advanced sealing (e.g., water resistance at 30 Pa, 25 dB noise reduction) ensures compliance with strict requirements for cold storage, cleanrooms, and controlled environments.

2. Technical Specifications and Innovations

• Power and Control Systems:

• Compatible with 380V three-phase or 220V single-phase power, integrated with safety features like infrared sensors and pressure-sensitive edges to prevent accidents.

• IoT-enabled models support remote monitoring and integration with facility management systems.

• Durability:

• Operational temperature range: -35°C to 65°C, suitable for extreme climates.

• Corrosion-resistant coatings (e.g., powder coating) extend lifespan in aggressive industrial settings.

3. Applications Across Industries

Rigid high-speed doors are widely adopted in sectors demanding efficiency and environmental control:

• Manufacturing and Logistics:

• Factories/Warehouses: Minimize energy loss with rapid cycling while protecting interiors from dust and wind.

• Cold Chain Facilities: Insulation (U-value: 0.4 W/m²·K) maintains temperature integrity, reducing energy costs.

• Specialized Environments:

• Aviation/Transportation Hubs: Customizable dimensions (up to 8m wide × 12m high) accommodate large vehicles.

• Healthcare/Food Processing: Meet hygiene standards with smooth, non-porous surfaces to prevent contamination.

4. Compliance and Certifications

To ensure safety and reliability, rigid high-speed doors must adhere to global standards:

• Safety Certifications:

• CE (electromagnetic compatibility and mechanical safety) and UL (electrical safety) certifications are critical for North American and European markets.

• Fire-rated models comply with DIN 4102 for flame resistance.

• Quality Assurance:

• ISO 9001-certified manufacturing processes guarantee material traceability and product testing.

5. Future Trends and Advancements

• Smart Integration:

• Adoption of 5G and Industrial IoT (IIoT) enables predictive maintenance and real-time diagnostics.

• Sustainability:

• Recyclable materials (e.g., eco-friendly aluminum) align with circular economy principles.

• Energy-efficient designs (e.g., dynamic sealing) support green building certifications like LEED.

Conclusion

Rigid high-speed doors are indispensable in modern industrial infrastructure, balancing speed, safety, and energy efficiency. Their evolving integration with smart technologies and sustainable practices positions them as critical components for Industry 4.0 and beyond.
