304 Stainless Steel Fire Door Frame: A Comprehensive Guide to the Core Skeleton of Safety Protection

1. 304 Stainless Steel: The "Safety DNA" of Fire Door Frames

304 stainless steel is widely used in fire door frames due to its unique material advantages:

1. Corrosion Resistance: Its alloy composition (18% chromium, 8% nickel) forms a passive oxide layer that blocks oxygen and moisture, preventing rust even in humid or high-temperature environments. Test data shows that 304 stainless steel can withstand over 5,000 hours in a neutral salt spray test without corrosion, far exceeding the 200-hour standard for ordinary carbon steel.

2. High-Temperature Stability: With a melting point of 1,400°C, it maintains structural integrity during fires (typically 800–1,200°C), preventing frame deformation that could compromise fire sealing.

3. Mechanical Strength: Tensile strength ≥520 MPa and yield strength ≥205 MPa ensure the frame can support door weight and impact loads without warping over time.

Why Choose 304 Over 201 Stainless Steel?

201 stainless steel contains only 1–3% nickel, making it prone to rust spots in humid conditions. In contrast, 304 stainless steel’s 8% nickel content improves corrosion resistance by 3x, making it ideal for hospitals, kitchens, basements, and other moisture-prone areas.

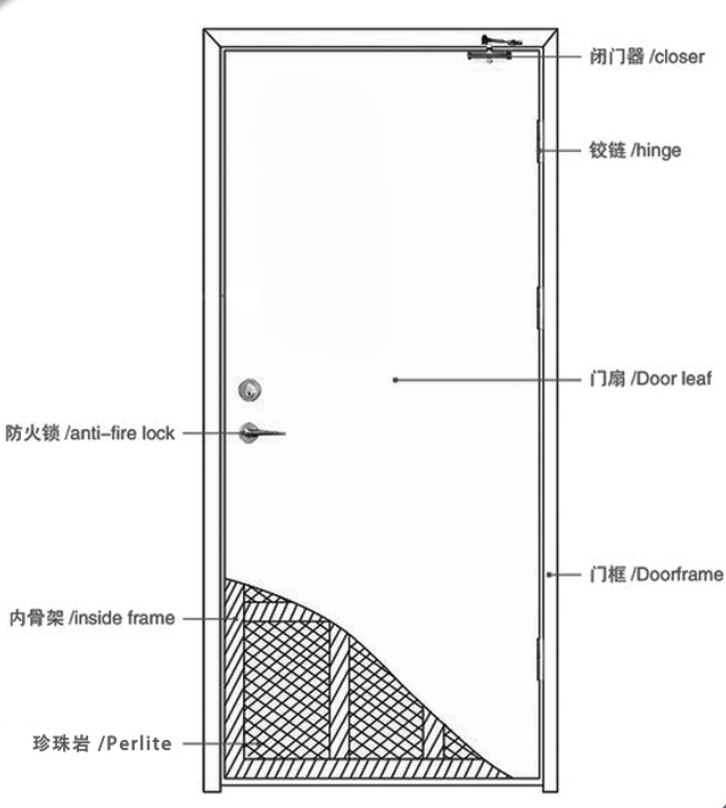

2. Structural Composition of a 304 Stainless Steel Fire Door Frame

A complete frame system consists of three key components working together to ensure fire resistance, sealing, and load-bearing performance:

1. Door Frame: The "Load-Bearing Skeleton"

• Material: Made from 1.2–2.0 mm thick 304 stainless steel sheets, cold-formed into a U-shape for enhanced rigidity.

• Key Features:

• Sealing Groove: A 5–8 mm deep groove holds an intumescent fire seal (expands 3–5x when exposed to heat), blocking smoke and flames.

• Mounting Holes: Pre-drilled M10 expansion bolt holes spaced ≤600 mm apart ensure secure wall attachment, meeting GB/T 13685-2009 wind resistance standards (withstands 1.5 kPa pressure).

2. Internal Reinforcement: The "Support Core"

• Structure: Welded 304 stainless steel square tubes (50×30 mm or 40×20 mm, 1.0–1.5 mm wall thickness) form a grid or rectangular support.

• Function: Enhances rigidity, preventing door sagging. Tests show reinforced frames support 80 kg/m² vs. 30 kg/m² for non-reinforced frames.

3. Fireproof Insulation: The "Thermal Barrier"

• Materials: Perlite board (300–400 kg/m³ density) or fire-resistant rock wool (120–150 kg/m³) fills the space between the frame and outer panel.

• Performance: Per GB 12955-2015 (Fire Door Standard), insulation must have a thermal conductivity ≤0.04 W/(m·K), keeping frame surface temperature ≤180°C during a 1-hour fire (Class A fire doors).

3. Key Parameters: The "Hard Metrics" of Frame Performance

When selecting a 304 stainless steel fire door frame, consider these critical specifications:

4. Applications: Where 304 Stainless Steel Frames Are Essential

These high-demand environments benefit from 304 stainless steel’s fireproof + durable combination:

1. Medical Facilities (Hospitals, Labs)

• Needs: Hygiene, moisture resistance, easy cleaning.

• Example: A hospital operating room using 304 frames showed no rust after 5 years, passing hygiene tests (<10 CFU/cm² bacterial count).

2. High-Rise Buildings (Residential, Offices)

• Requirement: Fire safety for evacuation routes.

• Regulation: Per GB 50016, buildings >54 m tall require Class A fire doors (≥1.5h resistance).

3. Humid Areas (Underground Parking, Kitchens)

• Advantage: 304 stainless steel outperforms carbon steel—e.g., a parking garage reduced frame failures from 20% to <1% annually.

4. Chemical/Food Processing Plants

• Compliance: Resists acids, alkalis, and food contact, meeting FDA food-grade material standards.

5. Frequently Asked Questions (FAQ)

1. How to verify genuine 304 stainless steel?

• Test: Use a stainless steel testing solution (304 stays unchanged; 201 turns red).

• Certification: Request a material test report (Cr≥18%, Ni≥8%).

2. Does a fire door frame need maintenance?

• Routine Care: Clean surfaces every 6 months; check seals for cracks (replace if damaged).

• Humid Areas: Apply stainless steel protector annually to extend lifespan.

3. Does a 304 frame affect door operation?

• No: Precision hinges (e.g., 304 stainless steel, 80 kg load capacity) and 3–4 mm door gaps ensure smooth operation (<80N opening force, per GB 12955).

Conclusion: A 304 stainless steel fire door frame is more than just a structural element—it’s a critical fire safety barrier. Its corrosion resistance, strength, and fireproof stability make it the optimal choice for modern construction. When selecting a frame, prioritize material quality, thickness, and fire rating to ensure long-lasting protection. Invest in 304 stainless steel for durability and safety that stands the test of time.
